Integral Inflatable Thread Protector - Lowering Consumption and Cost

Integral inflatable thread protector, also called air grip thread protector, is the upgraded product of dismountable inflatable thread protector, and it is also used to protect the outer thread of steel pipe. Its outstanding feature is that its gas nozzle is manufactured on the facade, which can protect the gas nozzle in the pipes loading, unloading and transportation process. The gas nozzle of dismountable inflatable thread protector is on the side, which may damage the gas nozzle. Integral inflatable thread protector is made from polyurethane containing a stainless steel ring in it, so integral inflatable thread protector is resistant to corrosion, abrasion and oil. It has many advantages, such as fast inflation, easy operation, good air-tightness, lowering consumption and cost. Besides, it can be repeatedly used.

2 red integral inflatable thread protectors on the floor
2 red integral inflatable thread protectors

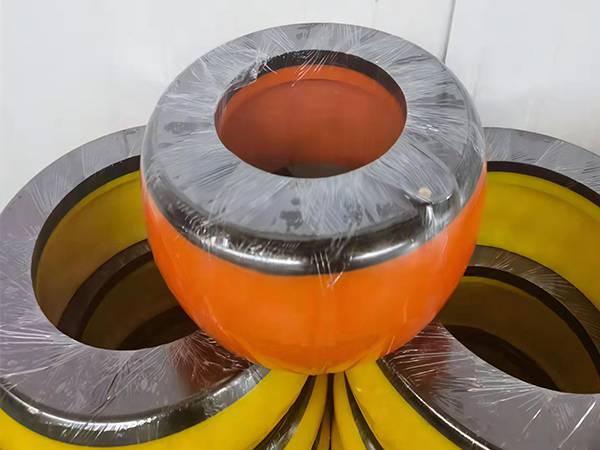

2 piles of integral inflatable thread protectors wrapped with plastic film
Integral inflatable thread protectors wrapped with plastic film

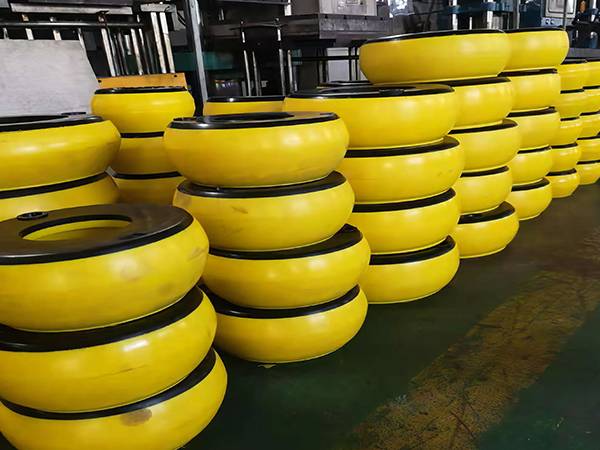

Side view of several piles of yellow integral inflatable thread protectors in factory
Yellow integral inflatable thread protectors side view

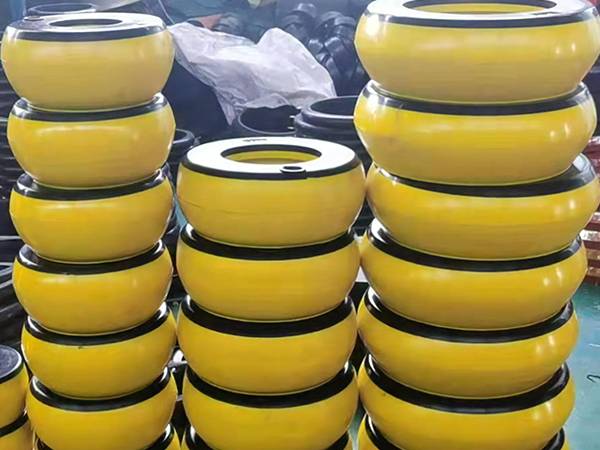

Front view of several piles of yellow integral inflatable thread protectors in factory
Yellow integral inflatable thread protectors front view

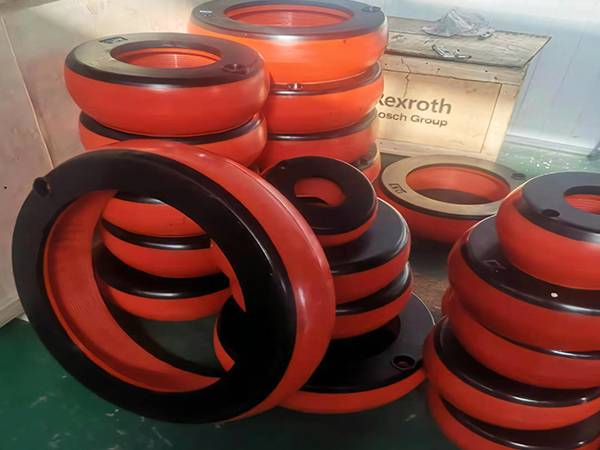

Side view of several piles of orange integral inflatable thread protectors in factory
Orange integral inflatable thread protectors side view

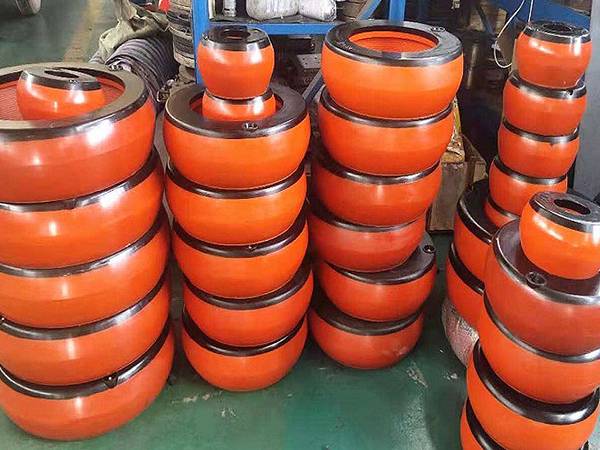

Front view of several piles of orange integral inflatable thread protectors in factory
Orange integral inflatable thread protectors front view

The details of integral inflatable thread protector:

  • Structure and material: it is made from polyurethane containing a stainless steel ring.
  • Size: 4-1/2" to 20".
  • Working pressure: 0.5 MPa - 1 MPa (75 psi to 150 psi).
  • Inflation time: 2 s to 10 s.
  • Deflation time: 2 s to 13 s.
The specification of integral inflatable thread protector
Product code Size Working pressure Inflation time Deflation time
inch MPa psi second second
IGITP-01 4-1/2 to 5 0.5 - 1 75 - 150 2 2 - 3
IGITP-02 5-1/2 0.5 - 1 75 - 150 2 - 3 3 - 4
IGITP-03 7 0.5 - 1 75 - 150 3 - 4 4 - 5
IGITP-04 9-5/8 0.5 - 1 75 - 150 5 6 - 7
IGITP-05 13-3/8 0.5 - 1 75 - 150 7 - 8 9 - 10
IGITP-06 18-3/8 0.5 - 1 75 - 150 8 - 9 10 - 11
IGITP-07 20 0.5 - 1 75 - 150 10 12 - 13
